BODY
Smooth walls with reinforcements all around.Front frame with strong beams to stand thrust of hydr.-cylinder for the push-out-plate. There is a dirty water tank in front bottom of body as standart. Body is connected to truck sub-frame with interlaced subframe using elastic and rigid elements.
-

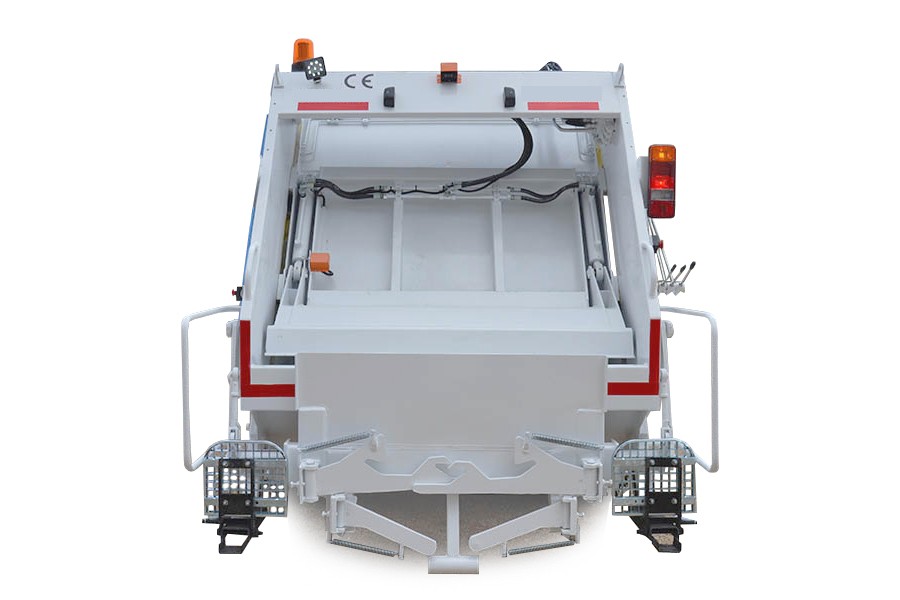

PUSH-OUT PLATE TAILGATE , COMPRESSION MECHANISM ( SLEDGE – SHOVEL )
PUSH-OUT plate moves in the NPU rails which are welded above from the floor to the inner sides of the body.Push-out plate has easily replaceable poliamid shoes with bolted connection.Ejection plate moves by means of a double acting telescopic cylinder.It’s kept at the rear of the body when it’s empty, and moves automatically to the front by means of a counter pressure valve as the refuse is packed in the tailgate. Tailgate connected to body with top hinges. The tailgate structure is consist of 1 sledge, 1 shovel, hopper and their cylinders. When garbage is put inside the hopper, with the help of the sledge and shovel this garbage goes into body and compressed with push-out plate. Sledge moves linearly and shovel moves radially to sweep the garbage inside the body, the sledge runs on sliding rails with roller or shoes. Accessories on the tailgate : • Waste water tank under hopper min. Made from 3 mm. ST 37.2 steel. • Waste water drainage outlets on both side of tailgate • Full cover of tailgate Rubber seal between tailgate and body to prevent dirty water leakage. • Security valves on tailgate to prevent sudden fall of tailgate during maintenance and discharging of refuse. • Two safety bars will be given to be put during maintenance. • Protection tray for chassis while unloading garbage
Garbage Compactor
A Garbage Compactor is a heavy-duty waste management machine designed to reduce the volume of solid waste through mechanical compression. By compacting waste into smaller, denser loads, it minimizes the frequency of waste collection, optimizes space usage, and reduces transportation and disposal costs. Compactors are ideal for locations generating large volumes of waste, ensuring a cleaner, more efficient waste handling system
Description

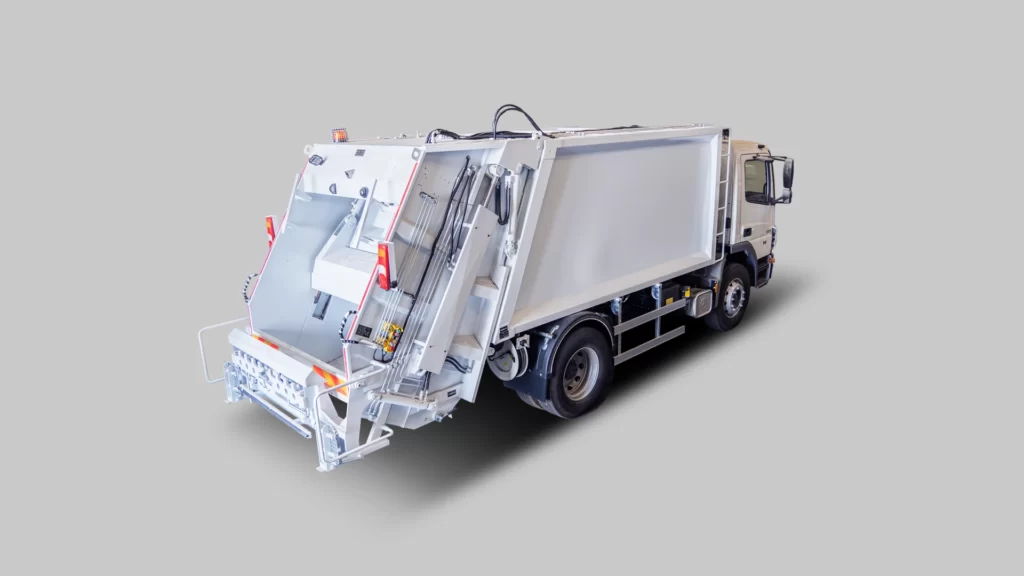

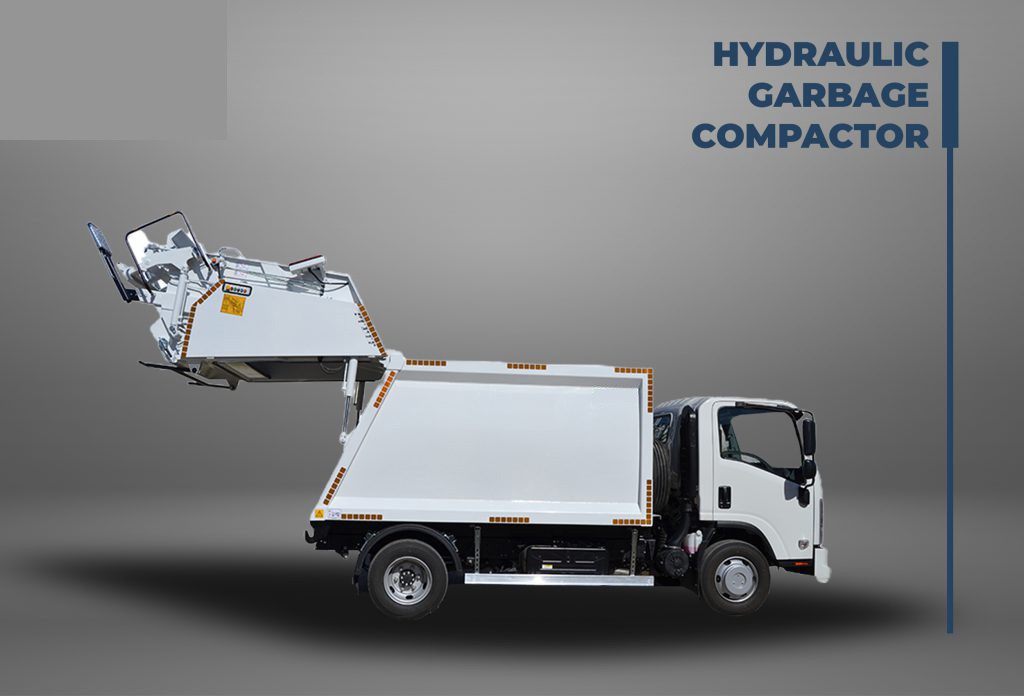

Hydraulic Garbage Compactor Vehicles. Body 5 m3-24m3, Tailgate:8m3-25m3, Hydraulic System Drive :PTO, Container Lifters :120 lt 240 lt 1100 lt , Working area lighting, Rotating beacon, Non slip step with safety bar, Cover for truck body side walls, Automatic manual control option, Rear view camera . call us for details price.
