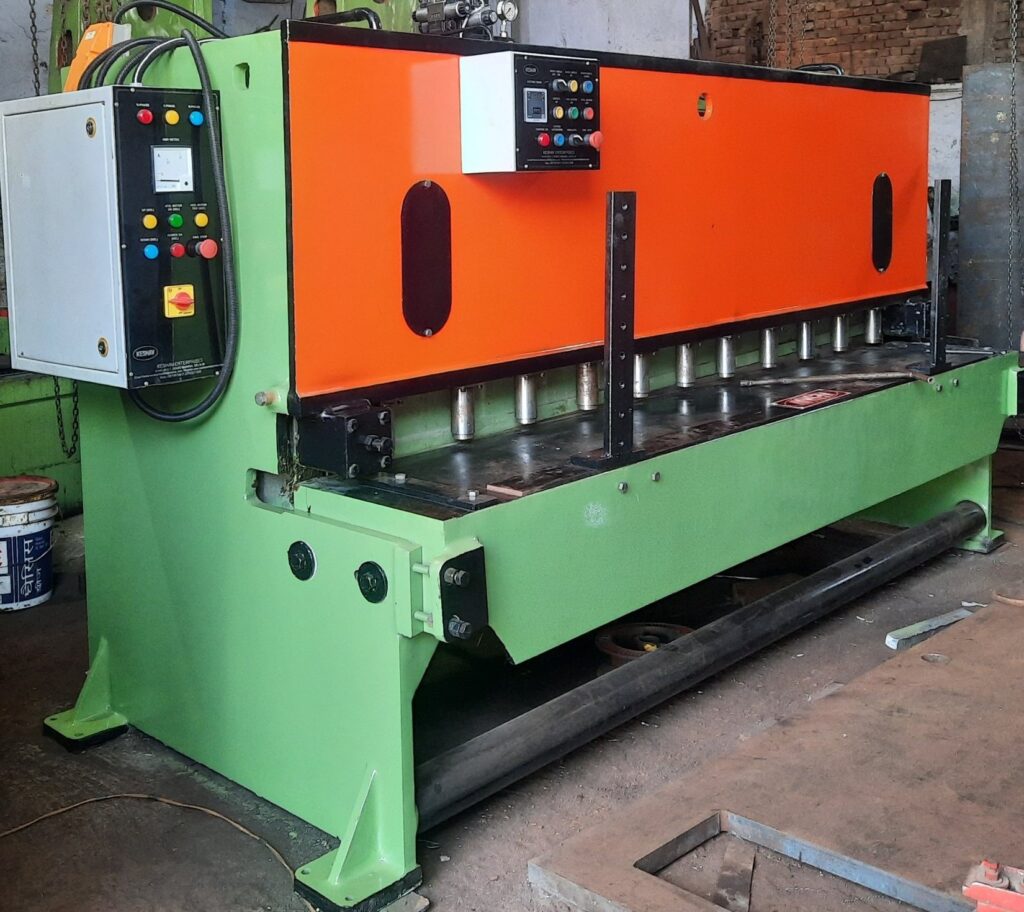

NC Shearing Machine, For Sheet Cutting
Shearing Thickness 1 to 13mm Usage/Application sheet cutting Control Type nc Shearing Material ms, ss, alluminium Cutting Material ms Automation Grade Semi-Automatic Back Gauge Manual 600mm travel Country of Origin Made in India Availability In Stock The machines are supplied with easy to use axis NC Controlled heavy duty back guage (Range 760 MM) with PLC based controller on years of manufacturing experience. The emphasis is on speed, accuracy and repeatability. The general characteristics of the controller are Programming of axis position (mm), position correction, step repetition – 10 steps, each step can be repeated 99 times, Touch Screen LCD 7" display, protection against miscounting.
-
Short Facts:
Synchronization of cylinders by differential area principle eliminates complicated hydraulic circuits and imported servo valves. The ram is guided by three point roller guides with replaceable hardened liners. Variable rake angle adjustment by selector switch Rapid blade gap adjustment by levers calibrated in thickness. Table provided with hardnend transfer bars and front sheet supports for easy feeding of plates Shadow light indicator, Front gauging by disappearing stoppers mounted on left squaring arm and motorized backgauge are provided. Positive holding by hydraulic hold downs before shearing avoids slippage of sheets. Hydraulic cylinder with imported sealing elements duly honed tubes and hard chrome plates rods offer very long service life. NC Back Gauge
